Show areas and territory names

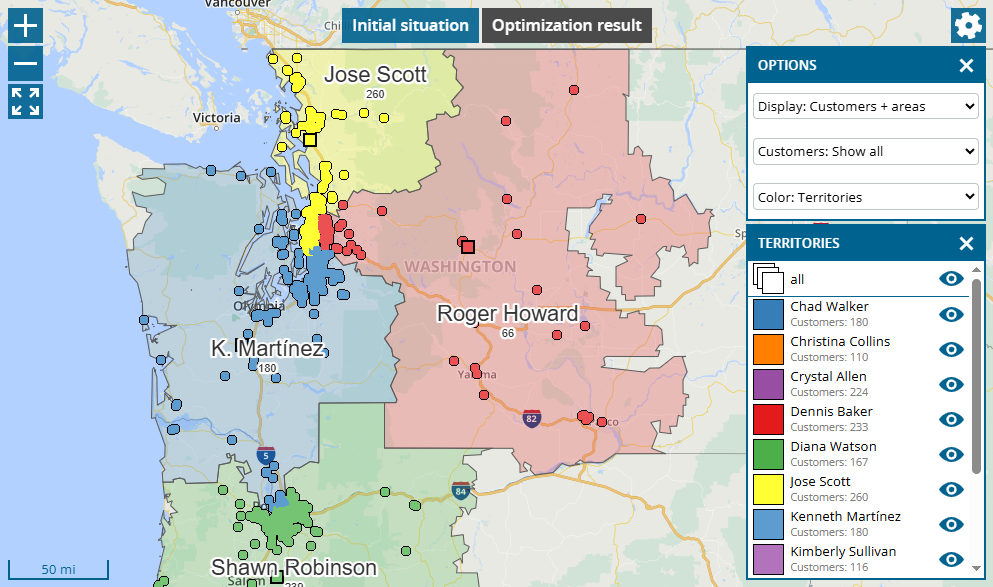

The display of the territory surfaces is available in each map of the territory optimization; simply open the desired map view, e.g. Initial situation > Map.
portatour® uses zip code boundaries when coloring areas. If there are several customers of several users in one zip code, it is assigned to the user that has the most customers there.
Depending on the space available, the area name is displayed complete or abbreviated.
Display key figures on map
Selectable key figures can be displayed below the territory name. The number of customers in the area is displayed by default. To display other key figures, proceed as follows:
- Click on any territory to select it.

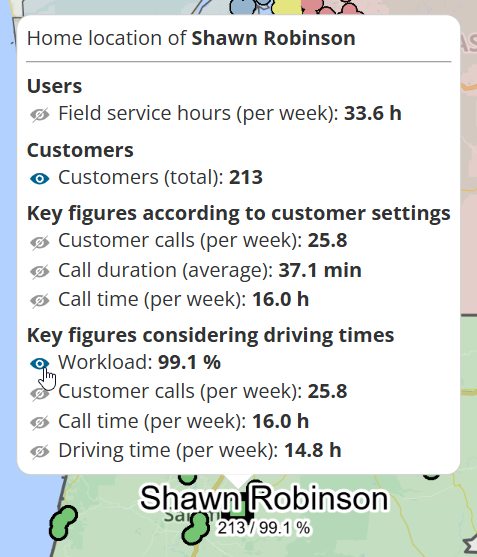

- Click again on the territory or on the home location to open the corresponding information bubble.
- Click on the eye symbol next to the desired key figure to show or hide it again on map.
Up to three key figures can be displayed simultaneously.
Further information
- For details on the display modes Beeline, Distance zones and Routes see Visualize the extent of areas via beeline, zone or route.
- Go to Search for suitable home locations for a territory to find out all about the Home location suitability option.
